Blue Max (SW-2832) Combination
Spraywasher/Hot Tank
Copyright © 2011 “AXE Equipment”. All rights reserved.
The Blue Max spacious 28" diameter turntable allows for studded block applications while the 32" vertical height will hold most any 6 cylinder block application.

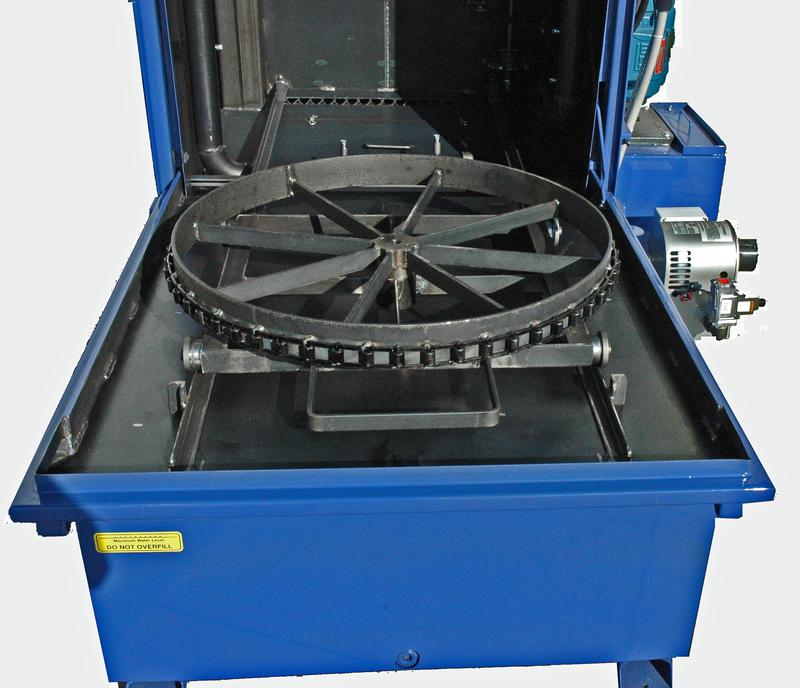

Spring loaded lay down door and rollout turntable makes for easy loading and unloading. Lay down door keeps the shop floor drier and cleaner.

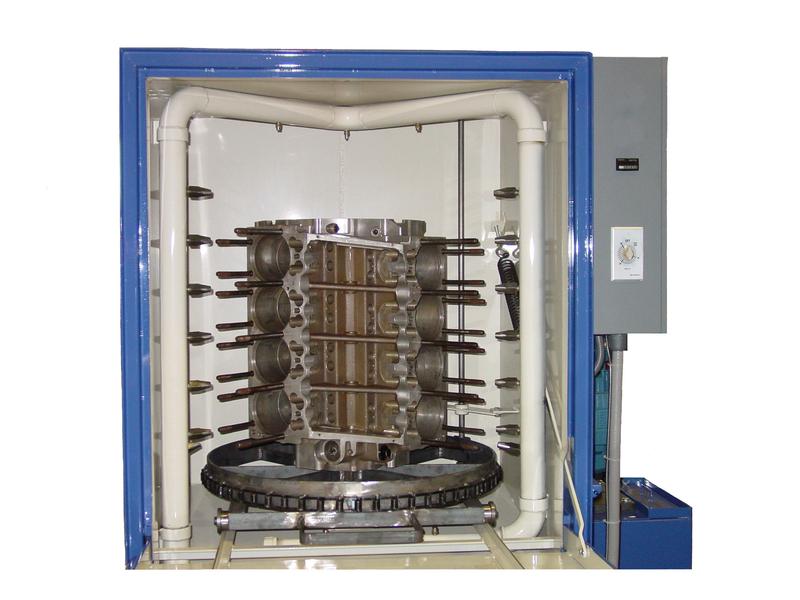

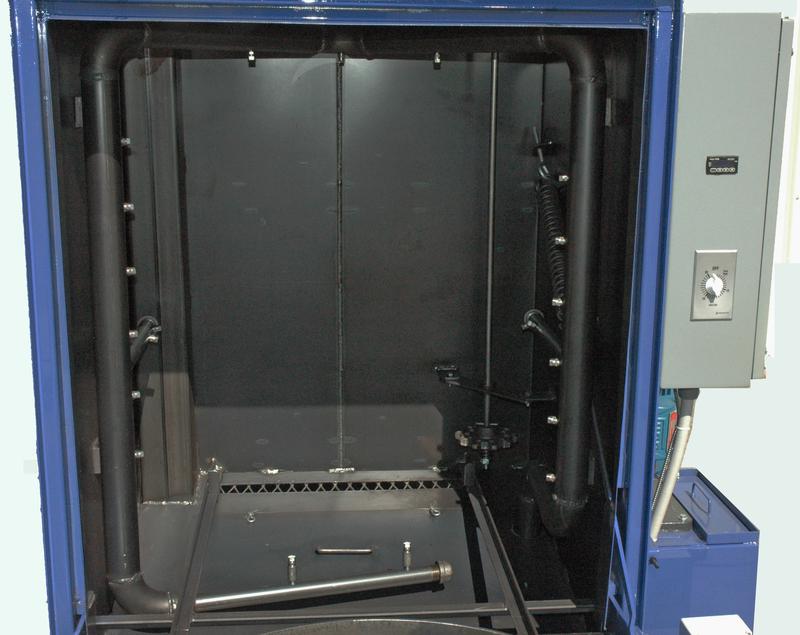

A well designed spray manifold is a key component for good cleaning. The Blue Max series uses large 2" diameter tubing with smooth radius style elbows in a 360 degree design inside the spray chamber for a non restrictive flow. Couple this design with its 7.5 hp pump and you get 100 gallons of hot water every minute over the parts inside quickly sheering away grease and grime.

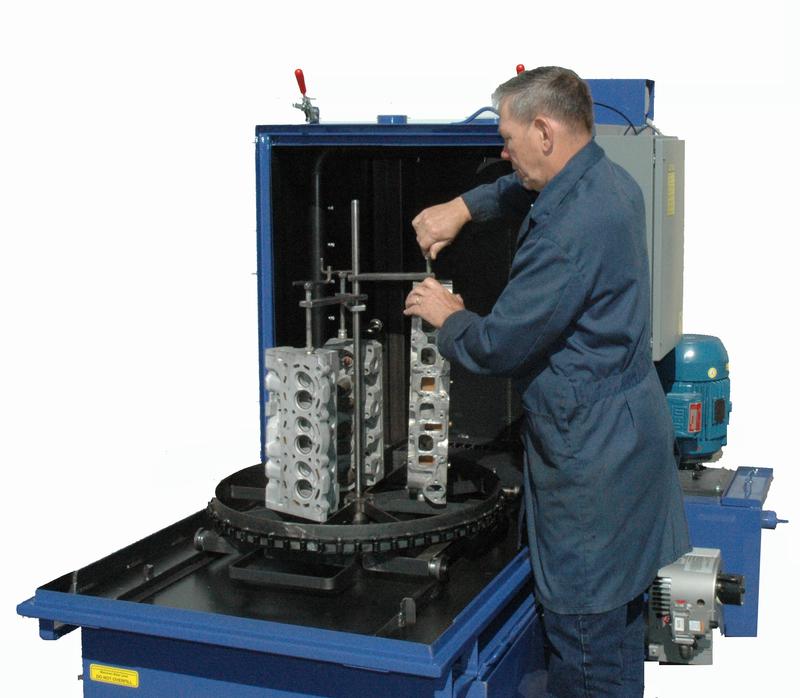

Standard tooling includes a clamping fixture for cylinder heads, intakes, cranks and other components.
SW-2832-HT
24" X 34" X 11"
SW-2832-R
13" X 34" X 11"

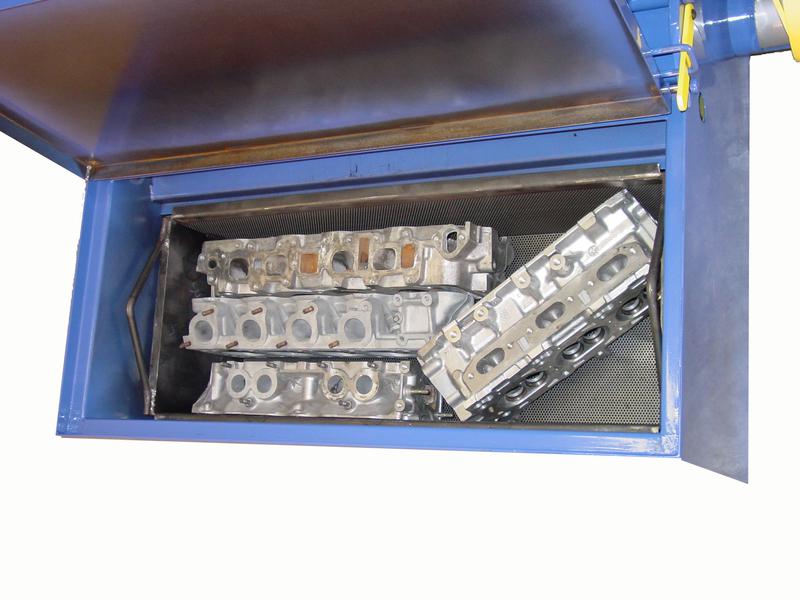

3 sizes of built in Hot Tanks available
Click You Tube Icon Here for SW-2832 Electric Heated Light Version
Video
Click You Tube Icon Here for SW-2832 Gas Heated Version Video
